ThermElc TE-03 ETH Digital Temperature And Humidity Data Logger With External Probes, MKT Calculation, 32,000 Points, Auto PDF/CSV USB Reusable Recorder
Digital Temperature And Humidity Data Logger
Designed for Vaccine Storage
-
Meets current CDC / VFC requirements and additional recommendations for vaccine storage and monitoring
-
FDA 21 CFR Part 11 Compliant
Why ThermElc
Focus on the research and development of life science and food cold chain full-process data visualization products.
Applied in vaccines, nucleic acid detection, IVD, blood products, hospital pharmacies, CDC, cold chain logistics, warehouse management, and other fields.
Easy to Install
-
Equipped with a professional bracket for installation and viewing of data

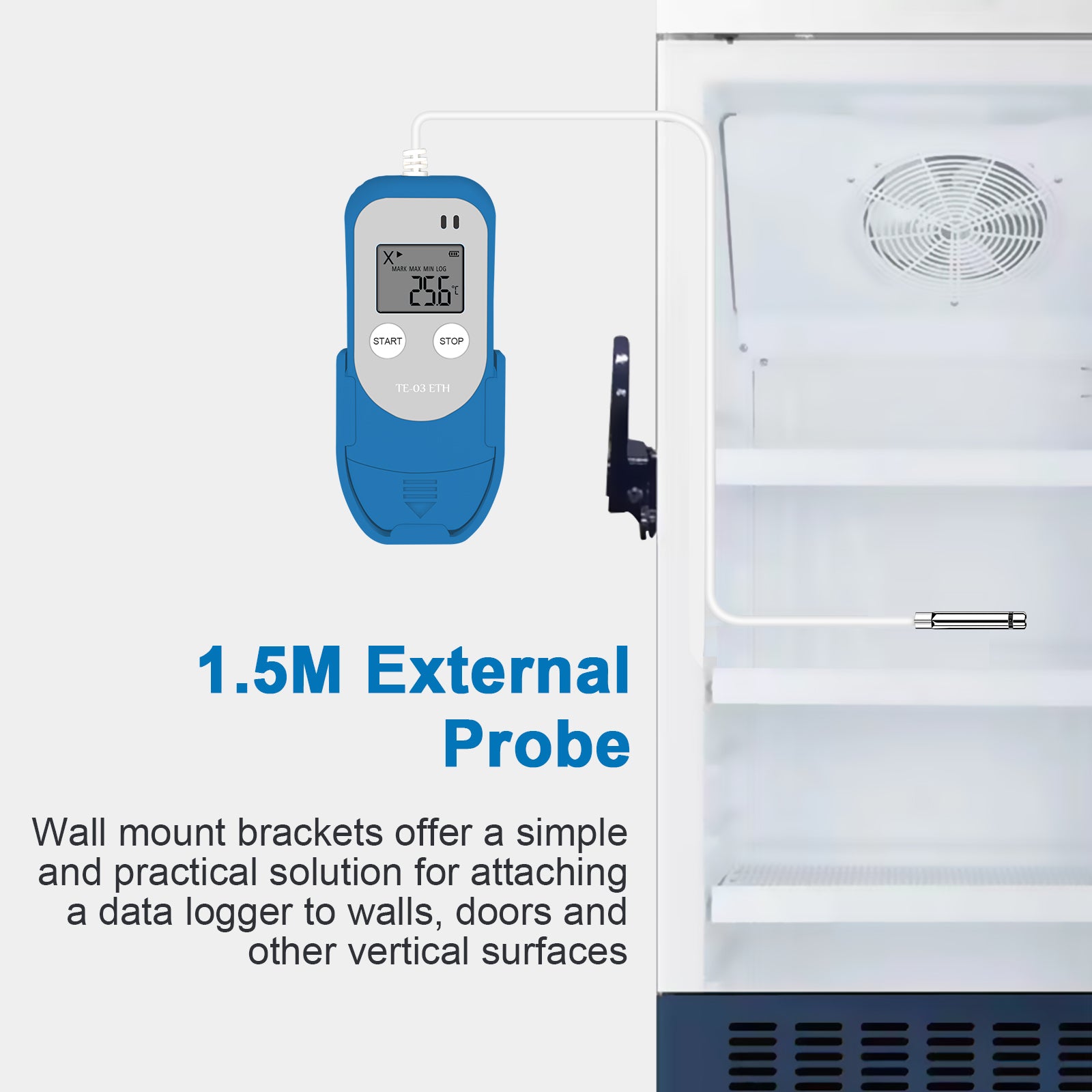

External Probe Design
This external digital temperature and humidity data logger features a high-sensitivity external probe, allowing you to monitor conditions inside fridges or incubators while the ThermElc loggers display remains visible on the outside to prevent thermal loss.

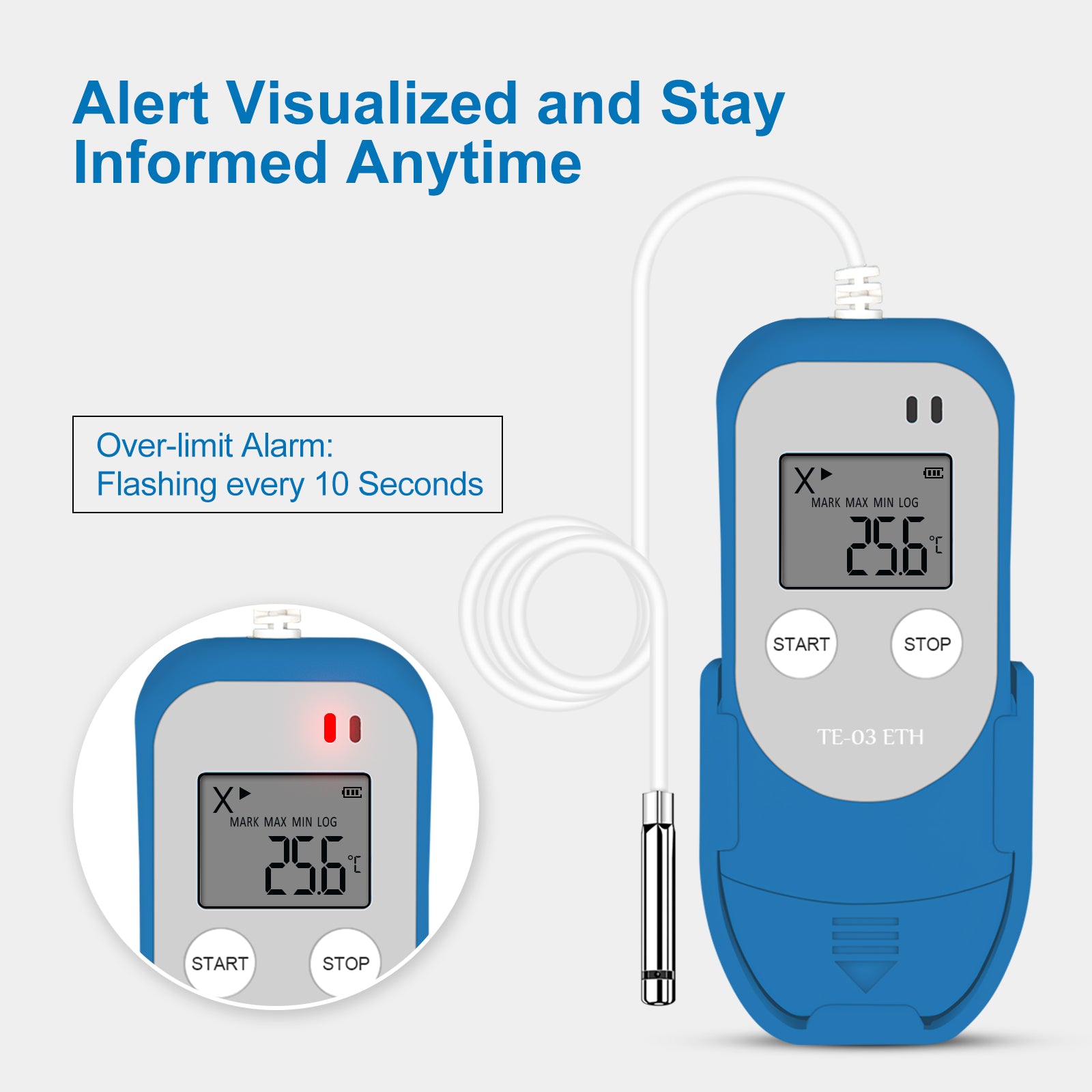

Alarm and Value Visibility
-
Current temperature and MAX / MIN values can be obtained from the LCD screen
-
Multi-alarm light alarm, report alarm, and LCD alarm
Ideal for Medical & Clinical Use
Ideal as a pharmacy fridge data logger or clinical trial data recorder, this device provides the precision required for high-stakes medical environments.
Each traceable data logger ensures total data integrity for vaccine storage and critical laboratory inventory, compliant with 21 CFR Part 11 and EN12830 Certified.

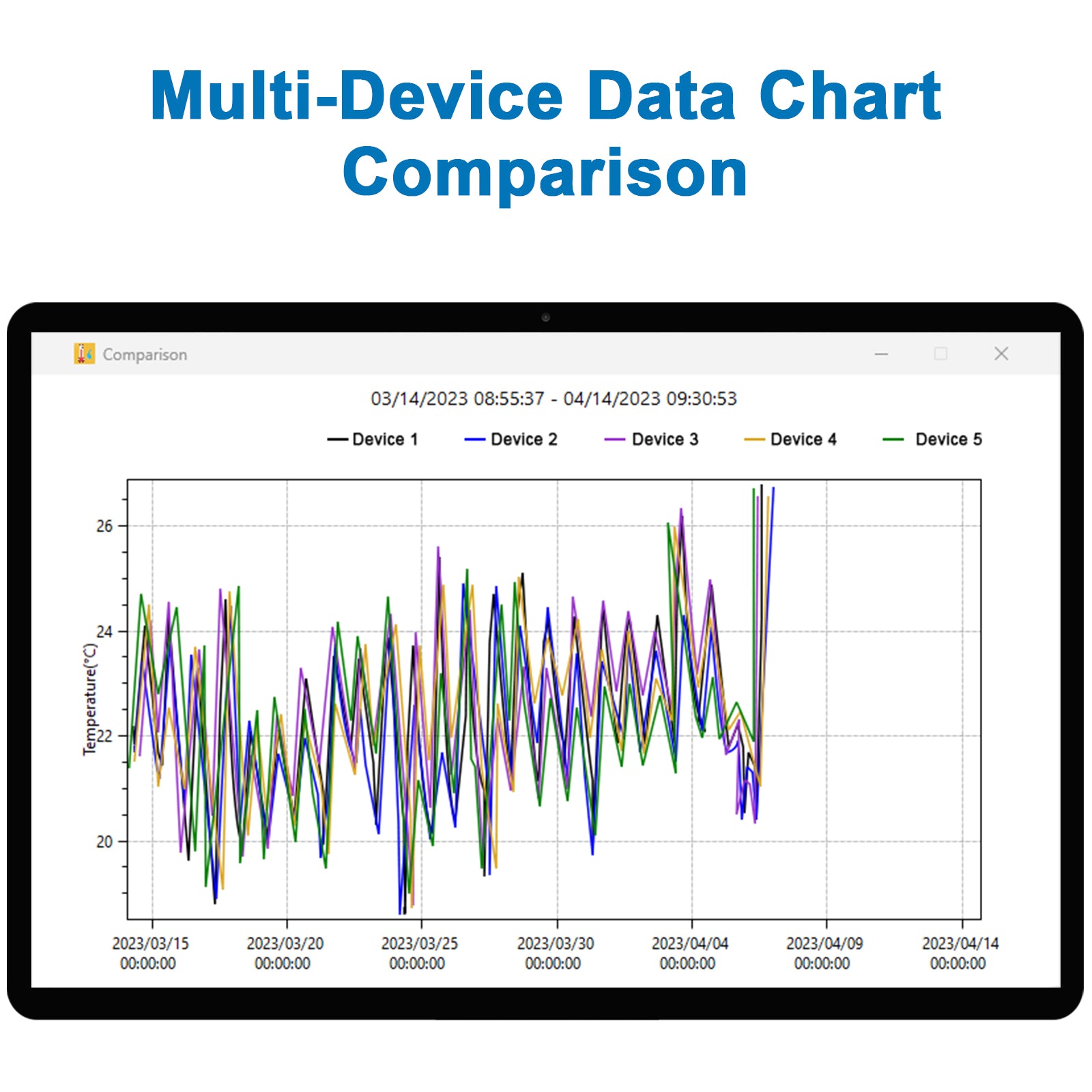

Multi-Device Data Management
Our fridge data logger with probe comes with free data management software, allowing you to compare data charts across multiple devices.
With this feature, you can easily monitor and analyse temperature data across different locations and times, making informed decisions for your needs.
Parameter Settable
-
Temperature unit switch
-
Alarm range
-
Logging interval

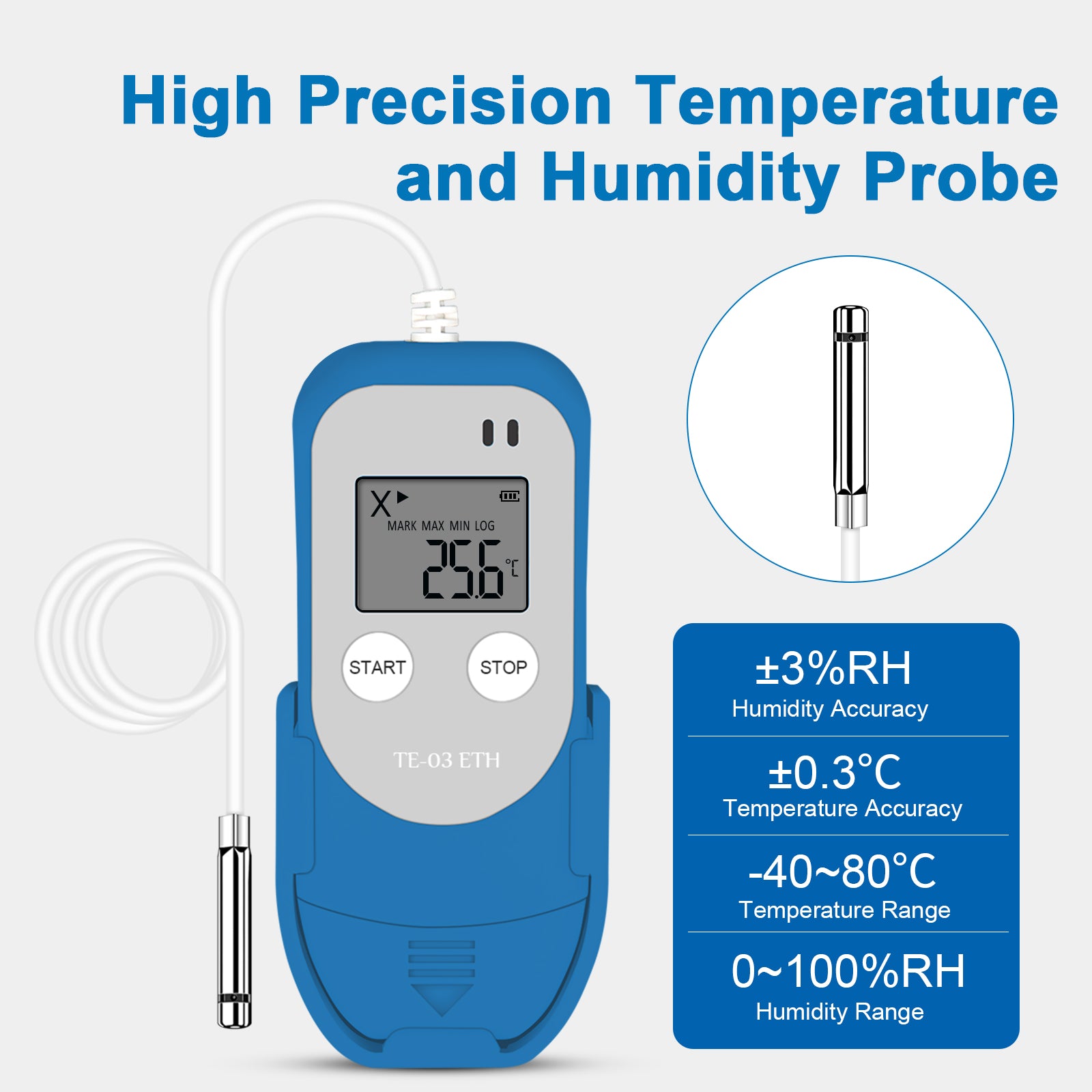

Parameters of the Temperature Data Logger
| Data Channels | Temperature Humidity Channel (Internal or External Sensor) |
| Measurement Range | -40°C ~ 85°C, 0~100% RH |
| Accuracy | ±0.3 (0°C ~ +60°C), ±0.5°C (other); 0%~100%RH, ±3%(10%~90%) |
| Resolution | 0.1°C |
| Data Storage Capacity | 34560 Temperature Readings |
| Sampling Rate | 10 Second to 99 Hours (User-Specified) |
| Startup Mode | Button or software |
| Start Delay | Optional, Default: 30 mins |
| Alarms | LCD Display, Light Alert, Report Alarm |
| Power Source | (1) CR2450 Lithium Coin Cell Battery |
| Battery Life | 2 Year |
| Communications | USB Connection to Setup Data Logger and Download Data |

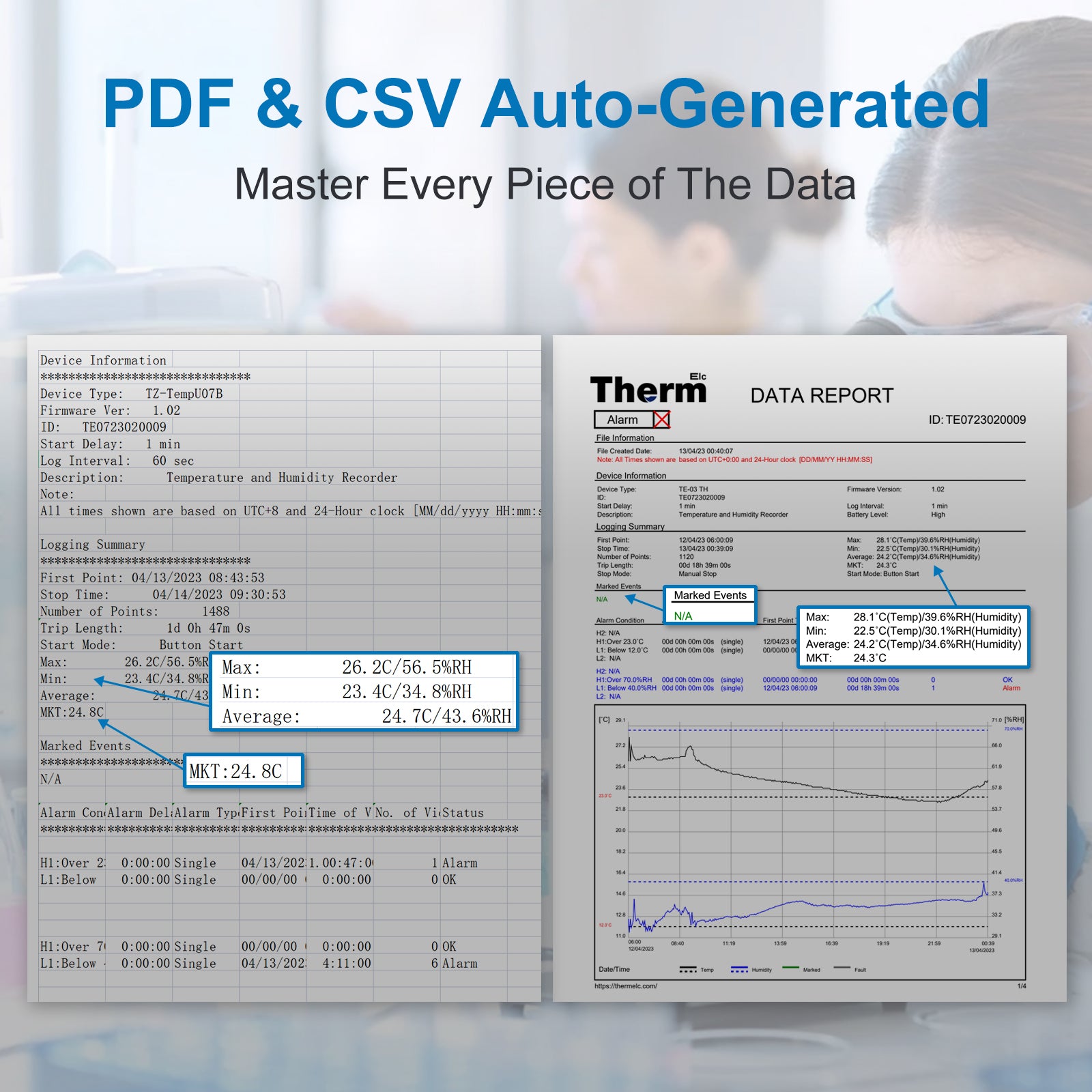

| Reports | PDF(Password Supported) and CSV Report Auto-generated |
| Install | Magnetic bracket |
| Weight | 75 grams |
| Dimensions | 10.6 cm x 4.9 cm x 1.7 cm |
